| Machine Id:
1391
| Serial No:
N/A
| Make:
SYKES
| Asking Price:
onrequest
| Year:
N/A
| Country:
United Kingdom
| Dimensions:
| Weight:
0.0
| Power:
| Location:
India
| Category:
Remanufactured Sykes Gear Hobbers
| Type of Machine:

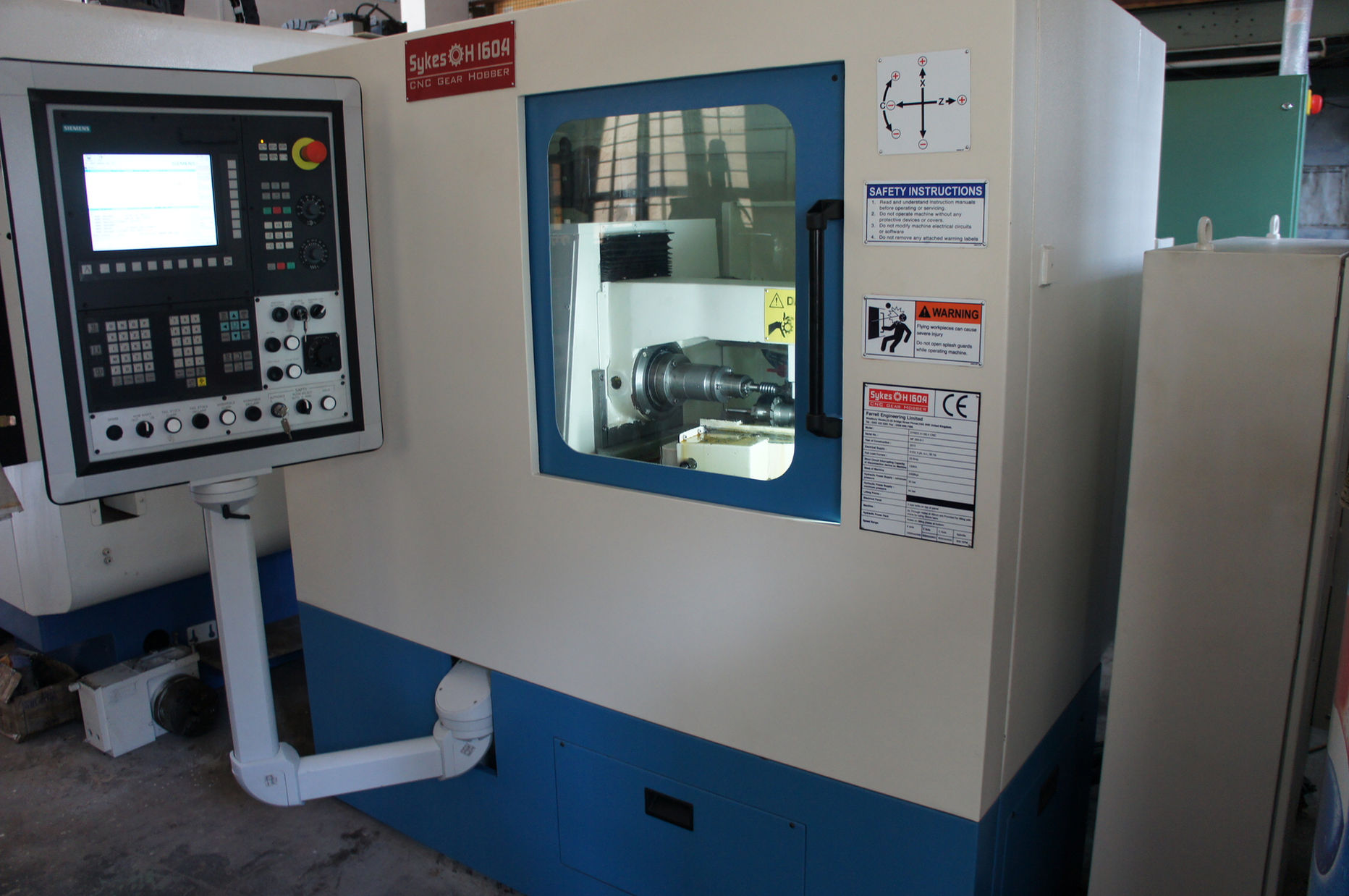

Three AXIS CNC HORIZONTAL GEAR HOBBER
Automatic High Performance Sykes H-160.4
Gear Hobbing Machine (Universal)
Built and Redesigned :-
NOW WITH A CNC VERSION for smooth Operation at the Highest.
A CNC version of Sykes H160.4 is ideal for smaller component to cut up-to 160mm Dia x 2.5 module ,
Minimum number of Teeth 4.
Max Hob Dia :-76mm
Hob Length :- 70mm
Hob Shift :- 46mm
The machine is a compact design and modular design for easy access as all rotating parts are in sub assemblies’ which can be removed for inspection without disturbing the rest of machine
FEATURES:-
State of the Art Drive Technology:-

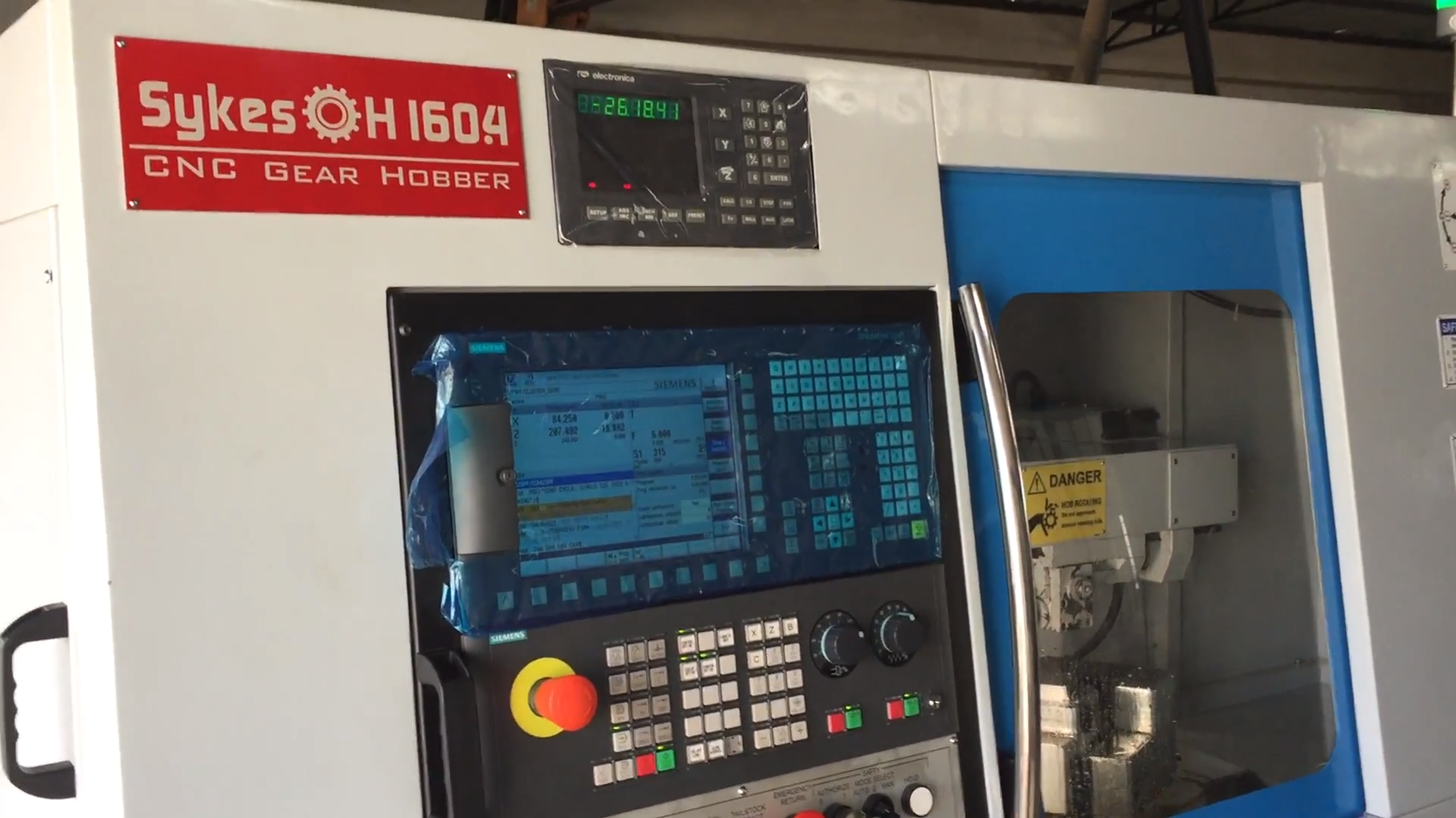

Base Machine with Siemens 828Advance Digital CNC control incorporating electronic gear box thus eliminating use of change gears.
CNC control Machine: - 3 axis (X,Z,C)
Automatic Hob Shifting
Multicut Cycle,
Crowning
Hydraulic Clamping

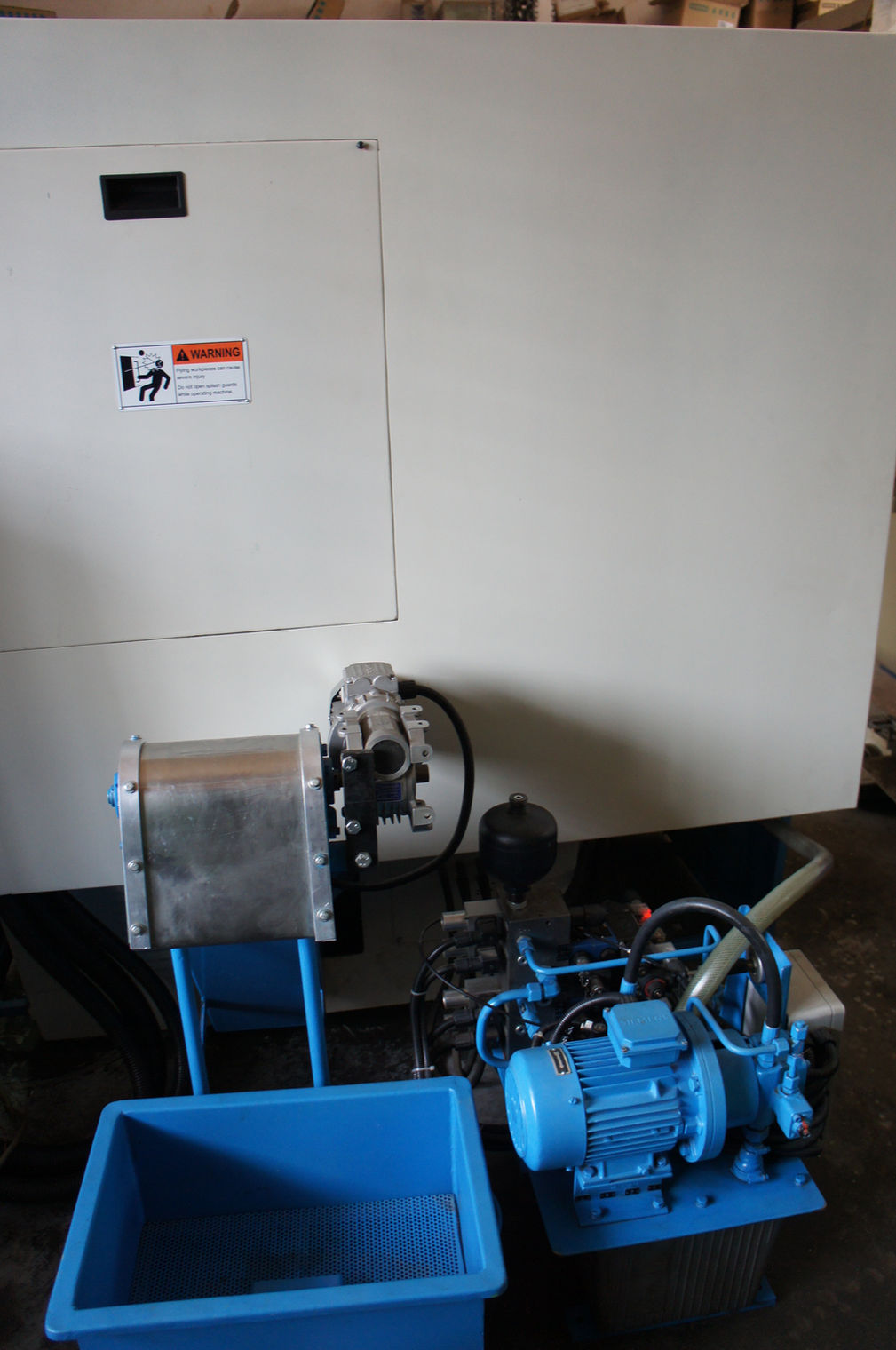

Motorised Central Lubrication
Rexroth Hydraulics ,
Magnetic Swarf Conveyor
Full enclosed safety guards
